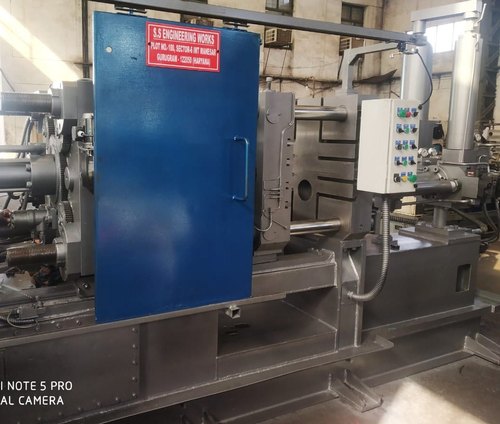

High Pressure Die Casting Machine 400 tons 660 tons 1100 tons
High Pressure Die Casting Machine 400 tons 660 tons 1100 tons
Approx. Rs 30 Lakh / Piece
Product Details:
| Minimum Order Quantity | 1 Piece |
| Machine Type | COLD CHAMBER DIE CASTING MACHINE |
| Material | ALUMINIUM AND ZINC |
| Material To Be Casted | ALUMINIUM AND ZINC |
| Die Locking Force | UPTO 1100 TONS |
| Power | PLC CONTROLLED |
| Usage/Application | DIE CASTING |
| Machine Weight tons | 5 TO 60 TONNES |
| Time of minimum Dry- cycle sec. | 7 SECONDS |
Description
We offer High Pressure Die Casting Machine
.01 Series – 80.01 to 1100.01 Ton Die Casting Machines
.02 Series – Extra Large platern Size 80.02 to 1100.02 Ton Die Casting Machines
.03 Series – Extra Large platern Size 80.03 to 1100.03 Ton Die Casting Machines with Auto Die Height Adjustment, Safety Doors, Inbuilt machine foundation, Oil Circulating Trays
Specifications:
| Product Code | SS 400 | SS 660 | SS 1100 |
| Locking force tons | 400 | 600 | 1100 |
| Die mounting plates (vertxhiriz) | 920 x 980 | 1130 x 1190 | 1570 x 1568 |
| Space between tie bars (HxV) mm | 580 x 640 | 720 x 780 | 995 x 995 |
| Diameter of tie bar mm | 120 | 150 | 205 |
| Max. die thickness mm | 750 | 880 | 1150 |
| Min. die thickness mm | 225 | 350 | 370 |
| Die opening stroke mm | 600 | 630 | 1000 |
| Injection force adjustable (with intensifier) tonnes | 43 | 65 | 100 |
| Injection plunger stroke mm | 400 | 600 | 700 |
| Ejecting force tonnes | 22 | 34 | 52 |
| Ejector stroke mm | 145 | 150 | 220 |
| Motor input (400/ 400V) 50 cycle supply k.w. | 22.4 | 45 | 45 x 2 |
| Time of minimum Dry- cycle sec. | 7 | 7 | 10 |
| Capacity of oil tank litres | 55052 | 1000 | 1350 |
| Machine Weight tons | 12.5 | 21 | 52 |
